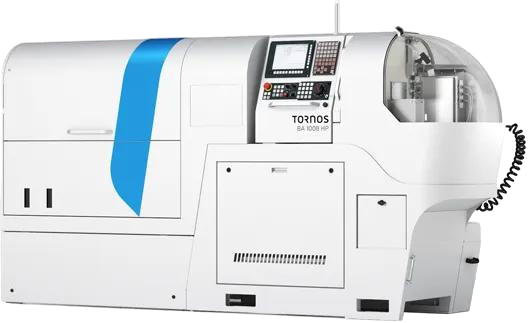

BA 1008 HP

BA 1008 High Pressure

As for the machining center BA 1008, the BA HP 1008 is working from the bar and has 4 frontal spindles, 3 lateral spindles and 2 back operation spindles. The BA 1008 HP integrates a complete spraying through spindle module for more precise and faster machining.

Benefits:

  • Ergonomics and design based on the BA 1008
  • Spraying through spindle and high pressure
  • Optimal fluid and chips management
  • Precious metal machining

Types of workpiece:

  • Bracelet components
  • Dial components
  • Appliques
  • Settings
  • Windows
Technical specifications BA 1008 HP
Axes

axes

 6 linear + 1 C axis
Max bar diameter

mm

 16

Frontal spindles

rpm

4 spindles 12’000 (mechanical), 28’000 (HF or HP) or 80’000 (HF)

(ER11-UP / ER8-UP collets)

Lateral spindles

rpm

3 spindles 12’000 (mechanical), 28’000 (HF or HP) or 80’000 (HF)

(ER11-UP / ER8-UP collets)

Counter-operations

rpm

2 spindles 12’000 (mechanical), 28’000 (HF or HP) or 80’000 (HF)

(ER11-UP / ER8-UP collets)
Sawing 1 tool (Ø 80mm)

Dimensions L x W x H

mm

 3200 x 998 x 1690
