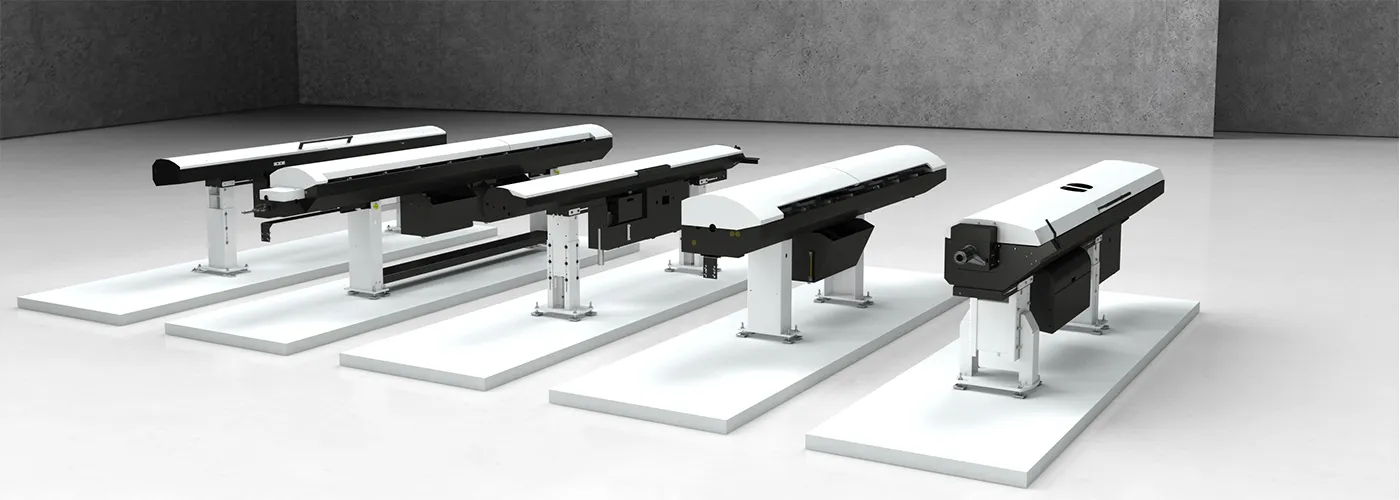

Bar Feeders

Main advantages:

Bar feeders which perfectly enhance the capabilities of TORNOS turning machines.

Robobar SBF		213	216	326	532	538
Machines		Swiss GT 13 / Swiss DT 13	EvoDECO 10 / EvoDECO 16	Swiss ST 26 / Swiss GT 26 / Swiss DT 26 / CT 20	EvoDECO 20 / EvoDECO 32	Swiss GT 32
Min. barstock dia.	mm	2	2	3	5	5
Max. barstock dia with preparation/without preparation	mm	13	16/16	26	32	38
Round, hexagonal and square bar change-over		Yes	Yes	Yes	Yes	oui
Bar length	m	3 / 4	3 / 4	3 / 4	3 / 4	3 / 4
Loading system		Screw loading type	Side load rack	Side load rack	Side load rack	Side load rack
Bar capacity		14 / 20*	18 bars with Ø 16 mm 150 bars with Ø 2 mm	270 mm	8 bars with Ø 32 mm 55 bars with Ø 5 mm	300 mm
Adjustable guide steady		Yes	Yes	Yes	Yes	Yes

* option
