Long Bar Feeders
Features
- Wide diameter range – ø0.5mm all the way upto ø110mm
- Length range – upto 3,800mm
- Single point diameter adjustment (patented)
- Rapid bar loading time
- Low friction coefficient, high wear-resisting Channel
- ‘V’ style Anti-Vibration design, reducing noise & vibration
- Torque and speed are adjustable to meet requirement
- Fast changing of Guide Channels saves time & increases efficiency
- Oil and Remnant are collected separately
- Remote Control greatly improves operational convenience
- LED Light Display shows ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’
- Vertical Front Loading (Optional some models)
- ‘X’-‘Z’ Axis Retraction (Optional)
Features
- No adjustment is required for material clamping (patented)
- Material change is fast & requires no adjustments
- Torque and speed are adjustable to meet requirement
- Fast changing of Guide Channels saves time & in

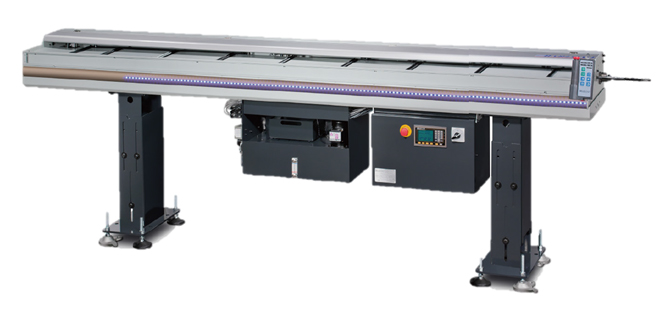

| MODEL | 04 | 07 | 12 |
| LATHE TYPE | FIX HEAD / SWISS TYPE (SLIDING HEAD) | ||
| SPECIFICATIONS | 2.0M/2.5M/3.0M | ||
| BAR DIAMETER | Ø0.8-ø4.0mm | Ø1.0 – ø7.0mm | Ø2.0 – ø12.0mm |
| BAR LENGTH | 2,100/2,800/3,100mm | ||
| TRANSMISSION | SERVO | ||
Features
- Single point diameter adjustment (patented)
- Rapid bar loading time
- Low friction coefficient, high wear-resisting Channel
- ‘V’ style Anti-Vibration design, reducing noise & vibration
- Torque and speed are adjustable to meet requirement
- Fast changing of Guide Channels saves time & increases efficiency
- Oil and Remnant are collected separately
- Remote Control greatly improves operational convenience
- LED Light Display shows ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’

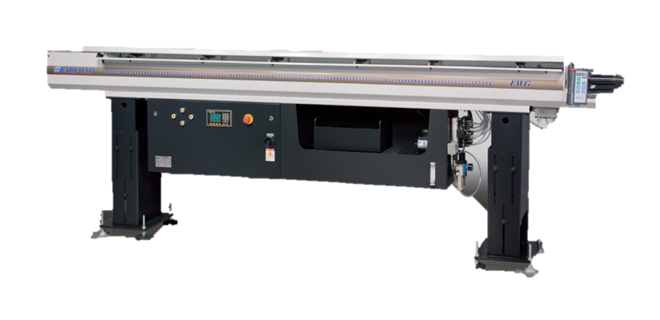

| MODEL | BWG/EWG |
| LATHE TYPE | FIX HEAD / SWISS TYPE (SLIDING HEAD) |
| SPECIFICATIONS | 2.5M/3.0M/3.6M |
| BAR DIAMETER | Ø3.0 – ø26.0mm |
| BAR LENGTH | 2,700mm/3,200/3,800mm |
| TRANSMISSION | SERVO |
Features
- Adjustment free for sizing bar material (patented)
- Rapid bar loading time
- Low friction coefficient, high wear-resisting Channel
- ‘V’ style Anti-Vibration design, reducing noise & vibration
- Torque and speed are adjustable to meet requirement
- Remnant/Bar Clamp requires no adjustment
- Fast changing of Guide Channels saves time & increases efficiency
- Oil and Remnant are collected separately
- Remote Control greatly improves operational convenience
- LED Light Display shows ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’
- Vertical Front Loading (Optional)

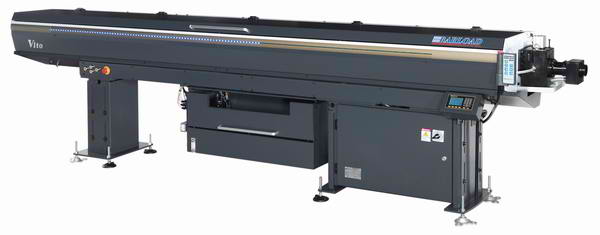

| MODEL | VITO-20/VITO-26/VITO-32/VITO-36/VITO-38/VITO-42/VITO-45/VITO-52/VITO-56 |
| LATHE TYPE | FIX HEAD / SWISS TYPE (SLIDING HEAD) |
| SPECIFICATIONS | 2.5M/3.0M/3.6M |
| BAR DIAMETER | Ø5.0 – ø56.0mm |
| BAR LENGTH | 2,700mm/3,200/3,800mm |
| TRANSMISSION | SERVO |
Features
- Adjustment free for sizing bar material (patented)
- Speedy bar change
- ‘V’ style Anti-Vibration design, reducing noise & vibration
- Torque and speed are adjustable to meet requirement
- Quiet, Stable & Smooth bar loading
- Fast changing of Guide Channels saves time & increases efficiency
- Oil and Remnant are collected separately
- CE Certified
- Remote Control greatly improves operational convenience
- LED Light Display shows ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’

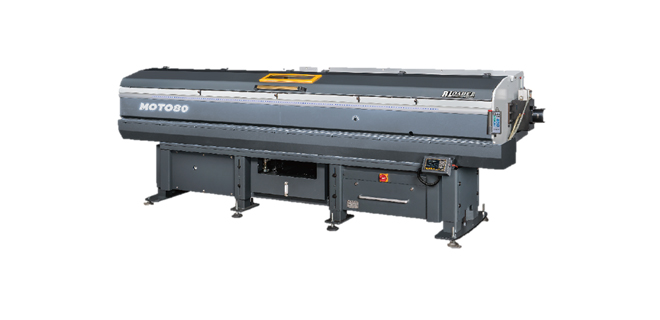

| MODEL | MOTO-65 / MOTO-80 |
| LATHE TYPE | FIX HEAD / SWISS TYPE (SLIDING HEAD) |
| SPECIFICATIONS | 3.0M/3.6M |
| BAR DIAMETER | Ø10.0 – ø80.0mm |
| BAR LENGTH | 3,200/3,800mm |
| TRANSMISSION | SERVO |
Features
- Vertical Front Loading
- Suitable for Large Diameter Tube
- Adjustment free for sizing bar material (patented)
- Speedy bar change
- ‘V’ style Anti-Vibration design, reducing noise & vibration
- Torque and speed are adjustable to meet requirement
- Quiet, Stable & Smooth bar loading
- Fast changing of Guide Channels saves time & increases efficiency
- Oil and Remnant are collected separately
- CE Certified
- Remote Control greatly improves operational convenience
- LED Light Display shows ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’

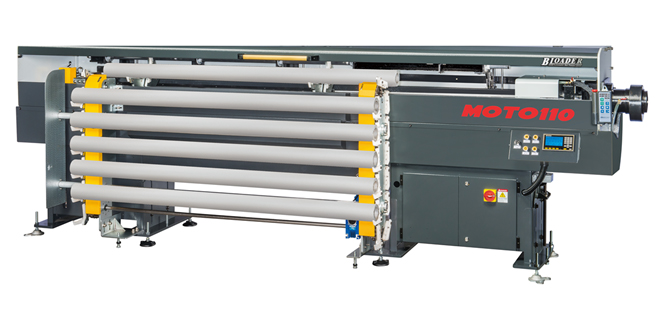

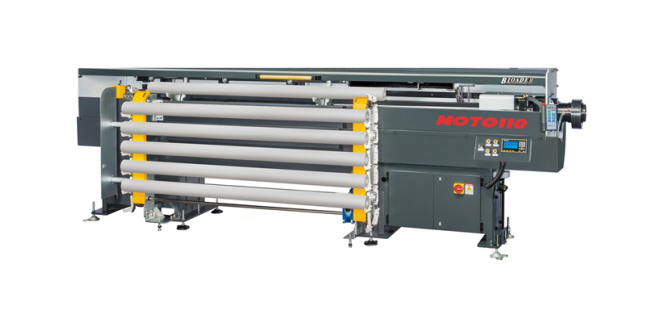

| MODEL | MOTO-110 |
| TYPE | LARGE DIAMETER TUBE/PIPE |
| SPECIFICATIONS | 3.0M |
| BAR DIAMETER | Ø50.0mm – ø110.0mm |
| BAR LENGTH | 3,200mm |
| TRANSMISSION | SERVO |
