Short Bar Feeders
PRODUCT RANGE
Features
- Fully SERVO Controlled Loading & Feeding (BK-80 & BK105)
- Accurate & fast feeding with or without a turret stop
- Increases productivity& reduces manufacturing costs
- CE Certified
- Quick Change Pushrod design
- No vibration, allows precision machining at high speed
- External LED display monitors, ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’
- User friendly display, easy to set & trouble shoot
- Easy changeover to different bar sizes
- Remote Control greatly improves operational convenience
- ‘X’ or ‘Z’ axis Linear Slides, allows easy access to CNC lathe for liner change or maintenance (Optional)
- Rear or Front or Front & Rear Loading Magazines (F&R Optional – BK-105)
Short Bar Feeders Product Range

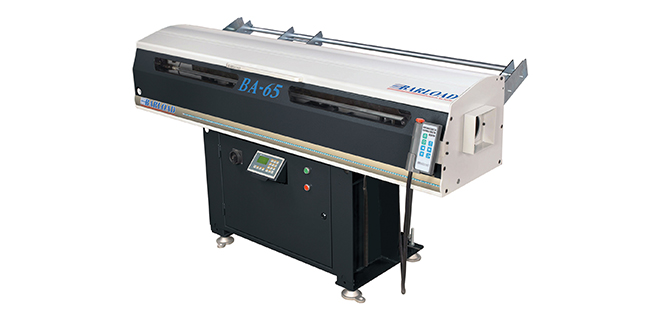

PNEUMATIC BA-65 (ø5-ø65mm)
Features
- Pneumatic loading & feeding
- Increases productivity& reduces manufacturing costs
- Feed material accurately with linear guide system
- External LED display
- Vibration free
- Easy changeover to different bar sizes
- Remote Control greatly improves operational convenience
- ‘X’ or ‘Z’ axis Linear Slides, allows easy access to CN C lathe for liner change or maintenance (Optional)
- imited RPM.
| MODEL |
BA-65 |
BA-65L |
| SPECIFICATIONS |
1.2M |
1.5M |
| BAR DIAMETER |
Ø5.0 – ø65.0mm |
| BAR CAPACITY |
Ø10.0mm/60pcs – ø65.0mm/10pcs |
| MACHINE WEIGHT |
320kg |
360kg |
| TRANSMISSION |
PNEUMATIC |
Short Bar Feeders Product Range

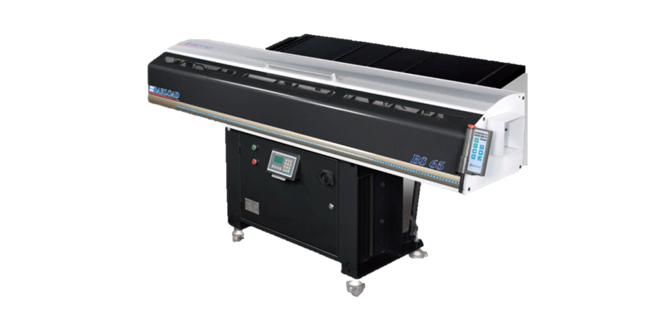

SERVO BS-65 (ø5-ø65mm)
Features
- SERVO Controlled for accurate, fast & soft feeding with or without a turret stop
- Increases productivity& reduces manufacturing costs
- No vibration, allows precision machining at high speed
- External LED display
- User friendly display, easy to set & trouble shoot
- Easy changeover to different bar sizes
- Remote Control greatly improves operational convenience
- ‘X’ or ‘Z’ axis Linear Slides, allows easy access to CN C lathe for liner change or maintenance (Optional)
| MODEL |
BS-65 |
BS-65L |
BS-65LL |
| SPECIFICATIONS |
1.2M |
1.5M |
1.8M |
| BAR DIAMETER |
Ø5.0 – ø65.0mm |
| BAR CAPACITY |
Ø10.0mm/60pcs – ø65.0mm/10pcs |
| MACHINE WEIGHT |
265kg |
280kg |
330kg |
| TRANSMISSION |
SERVO |
BARLOAD’s fine craftsmanship will guarantee maximum smoothness, stability and accuracy when each bar feeder is connected to a CNC lathe.
Short Bar Feeders Product Range

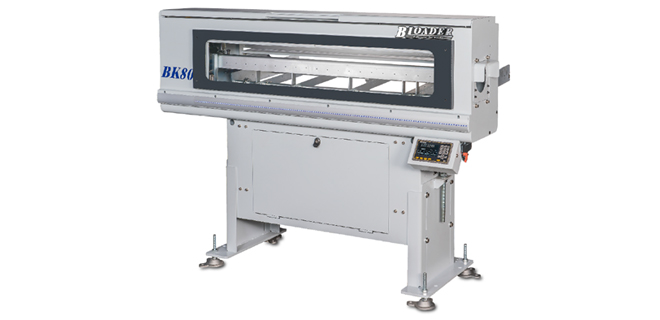

SERVO BK-80 (ø5-ø80mm)
Features
- Fully SERVO Controlled Loading & Feeding
- Accurate & fast feeding with or without a turret stop
- Increases productivity& reduces manufacturing costs
- CE Certified
- Quick Change Pushrod design
- No vibration, allows precision machining at high speed
- External LED display monitors, ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’
- User friendly display, easy to set & trouble shoot
- Easy changeover to different bar sizes
- Remote Control greatly improves operational convenience
- ‘X’ or ‘Z’ axis Linear Slides, allows easy access to CN C lathe for liner change or maintenance (Optional)
| MODEL |
BK-80 |
BK-80L |
BK-80LL |
| SPECIFICATIONS |
1.2M |
1.5M |
1.8M |
| BAR DIAMETER |
Ø5.0 – ø80.0mm |
| BAR CAPACITY |
Ø8.0mm/80pcs – ø65.0mm/10pcs |
| MACHINE WEIGHT |
400kg |
450kg |
500kg |
| TRANSMISSION |
FULL SERVO |
Short Bar Feeders Product Range

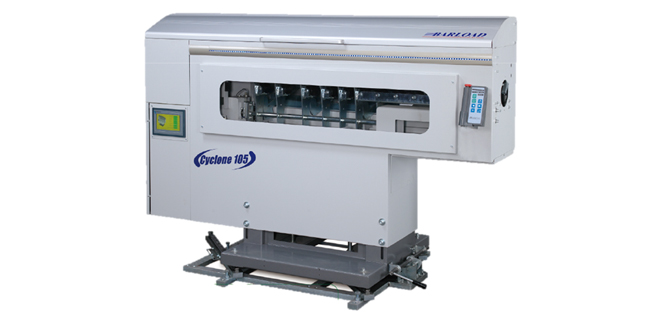

CYCLONE BK-105 (ø5-ø105mm
Features
- Fully SERVO Controlled Loading & Feeding
- Accurate & fast feeding with or without a turret stop
- ‘Pick and Place’ Loading System, quiet, no impact loading
- CE Certified
- Quick Change Pushrod design
- No vibration, allows precision machining at high speed
- External LED display monitors, ‘Bar Length’, ‘Bar Change’, ‘Bar feeder Error’, ‘CNC Error’
- User friendly display, easy to set & trouble shoot
- Adjustment free changeover to different bar sizes
- Remote Control greatly improves operational convenience
- ‘X&‘Z’ axis Linear Slides, allows easy access to CN C lathe for liner change or maintenance (Optional)
- Rear or Front or Front & Rear Loading Magazines (F&R Optional)
| MODEL |
BA-65 |
BA-65L |
| SPECIFICATIONS |
1.2M |
1.5M |
| BAR DIAMETER |
Ø5.0 – ø65.0mm |
| BAR CAPACITY |
ø105.0mm/5pcs (10pcs with Front & Rear Magazines) |
| MACHINE WEIGHT |
600kg |
700kg |
| TRANSMISSION |
FULL SERVO |
