Spinner Magnetic De Burring
Magnetic grinding makes use of an innovative patent. The Magnetic field power is used to induce the stainless steel media (PIN) creating a rapid rotation of PINs & workpiece for high-efficiency de-burring, polishing, cleaning & grinding. Patented design of magnetic needle (PIN). The grinding PINs can de-burr internally, inside holes, slots, nearly any machined feature.
Features
Irregular shaped parts, de-burring, polishing, cleaning & grinding all at the same time
High speed, simple & easy to operate
The workpiece is never deformed or damaged., accuracy is not effected
FAST – high speed completion, 5 to 20 minutes
Capacities – 0.2 to 12kgs
Models available for
Long parts
Plastics can also be de-burred (Cryogenically)
Jewelry
Magnetic or non-magnetic materials
PIN separators – easily separates workpieces & PINs
Features
Irregular shaped parts, de-burring, polishing, cleaning & grinding all at the same time
High speed, simple & easy to operate
The workpiece is never deformed or damaged., accuracy is not effected
FAST – high speed completion, 5 to 20 minutes
MODEL DIMENSION (LxWxH) TANK SIZE CONTAINER SIZE POWER WEIGHT
HD-765 960 x 1000 x 1100mm 740 x 680mm Ø650 x 250mm 220 VAC 150kg
Dimensions & Specifications on request.
Features
Irregular shaped parts, de-burring, polishing, cleaning & grinding all at the same time
High speed, simple & easy to operate
The workpiece is never deformed or damaged., accuracy is not effected
FAST – high speed completion, 5 to 20 minutes
MODEL DIMENSION (LxWxH) TANK SIZE POWER WEIGHT
HD-750CL 810 x 790 x 1070mm 600 x 540mm 220 VAC 150kg
Dimensions & Specifications on request.

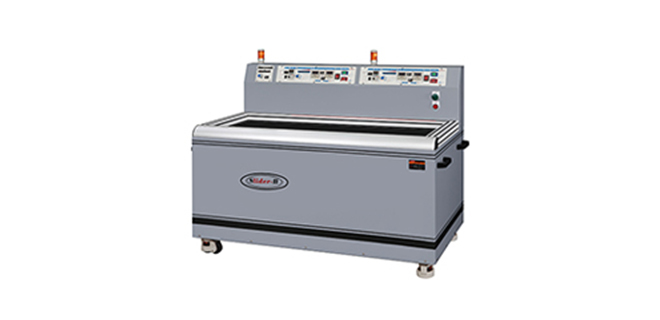

Features
Patented independent Twin-Spindle & Horizontal design
Ideal for long workpieces
Irregular shaped parts, de-burring, polishing, cleaning & grinding all at the same time
High speed, simple & easy to operate
The workpiece is never deformed or damaged., accuracy is not effected
FAST – high speed completion, 5 to 20 minutes
MODEL DIMENSION (LxWxH) TANK SIZE POWER WEIGHT
HD-7200 1480 x 670 x 800mm Customized to suit workpiece 3 phase 220/380 VAC 500kg
Dimensions & Specifications on request.
Features
Jewellery polishing & cleaning
High speed, simple & easy to operate
The workpiece is never deformed or damaged., accuracy is not effected
FAST – high speed completion, 5 to 20 minutes
MODEL DIMENSION (LxWxH) TANK SIZE POWER WEIGHT
HD-716 270 x 225 x 295mm 160 x 160mm 220 VAC 16kg
Dimensions & Specifications on request.
Features
Quick & simple separation of Workpiece & PINs
Suitable for long & large workpieces
FAST – high speed completion, 60 seconds
MODEL DIMENSION (LxWxH) CONTAINER SIZE POWER WEIGHT
HD-712 700 x 520 x 650mm 660 x 450 x 240mm 220 VAC 74kg
Dimensions & Specifications on request.

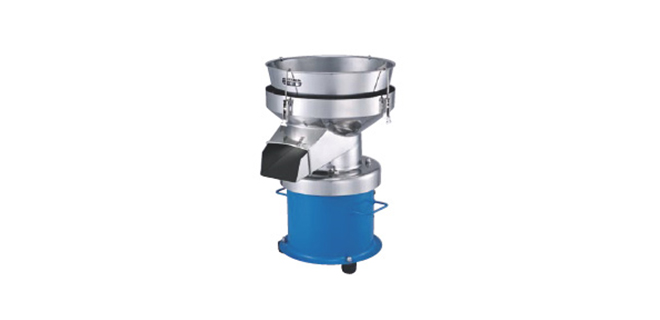

VIBRATION PIN SEPARATOR
Features
Quick & simple separation of Workpiece & PINs
FAST – high speed completion
MODEL DIMENSION (LxWxH) SIEVE SIZE POWER WEIGHT
EVS-R580 450 x 450 x 665mm Ø380mm 220 VAC 47kg
Dimensions & Specifications on request.
